RC4WD

RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058

(No reviews yet) Write a Review
SKU:
Z-E0058
UPC:
639302581001
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
  • RC4WD 1/10 High Performance SMD LED Light Bar 75mm 3" Receiver PLUG Z-E0058
MSRP: £45.49
RRP £39.99
— You save £5.50

Description

Additional Information -

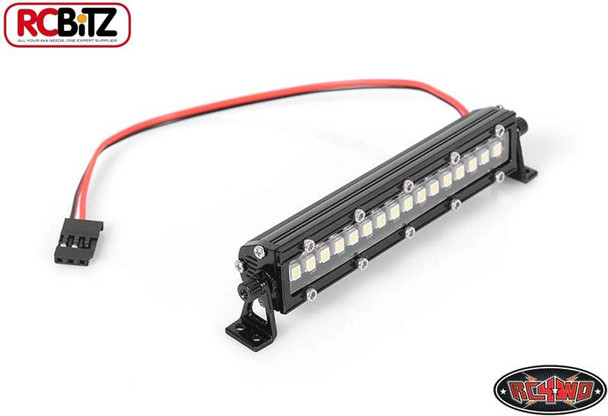

RC4WD 1/10 High Performance SMD LED Light Bar (75mm/3")


This is a all new High Performance Lightbar for any RC. Will make any project look better and add much needed lighting.

https://www.beadlok.com/product/images/Auua01/Z-E0058-1.jpg

Specifications:

  • Cast Molded Housing
  • Reversible "L" brackets to fit many applications
  • Adjustable "L" brackets for rotating light
  • 16 Individual LED bulbs
  • Super Bright Lighting
  • Vented on side to dissipate heat
  • Works with up to 11.1v lipo with use of a BEC to regulate voltage below 7.4 volts
  • Standard Receiver Plug
  • Connects to extra channel on receiver
  • 2mm Mounting Holes
  • Rated Output 32 Lumens
  • Overall Length: 3.7in / 95mm
  • Light Bar Width: 3.1in / 7.88mm
  • Overall Height: 0.81in / 20.8mm
  • Light Bar Height: 0.63in / 16.2mm
  • Weight: 1.09oz / 31g


https://www.beadlok.com/product/images/Auua01/Z-E0058-2.jpg

https://www.beadlok.com/product/images/Auua01/Z-E0058-3.jpg

https://www.beadlok.com/product/images/Auua01/Z-E0058-4.jpg

https://www.beadlok.com/product/images/Auua01/Z-E0058-5.jpg

What's Included:

  • 1x RC4WD 1/10 High Performance SMD LED Light Bar (75mm/3")


Replacement Hardware:

  • 10x M1.5 x 6mm SHCS (Z-S1012) (Silver)
  • 6x M1.6 x 6mm Phillips Button Head (Silver) (Z-S1387)
  • RC4WD Light Bar Knurled Nuts (Z-S1484)

Optional Parts:

  • Y harness with Tamiya Connectors for Lightbars (Z-S1601)
  • RC4WD Mini ON/OFF Switch For Lighting Unit (Z-E0081)
  • RC4WD Strobe Lighting Unit (Z-S1573)

Notes:

  • Use medium grade threadlock on "L"bracket nut to prevent loss and to keep the light in position.
  • Mounting hardware can be found here. M2 SHCS / M2 BHSC
  • While the lightbar comes with a standard receiver plug, this is only for ease of use. The receiver will not allow enough power for the lightbar and it will be dim. If you want the light to be bright, you will need to power it directly from your battery, or use a BEC to get more power to your receiver.
